Description
Overview
Some environments demand more from their drainage systems.

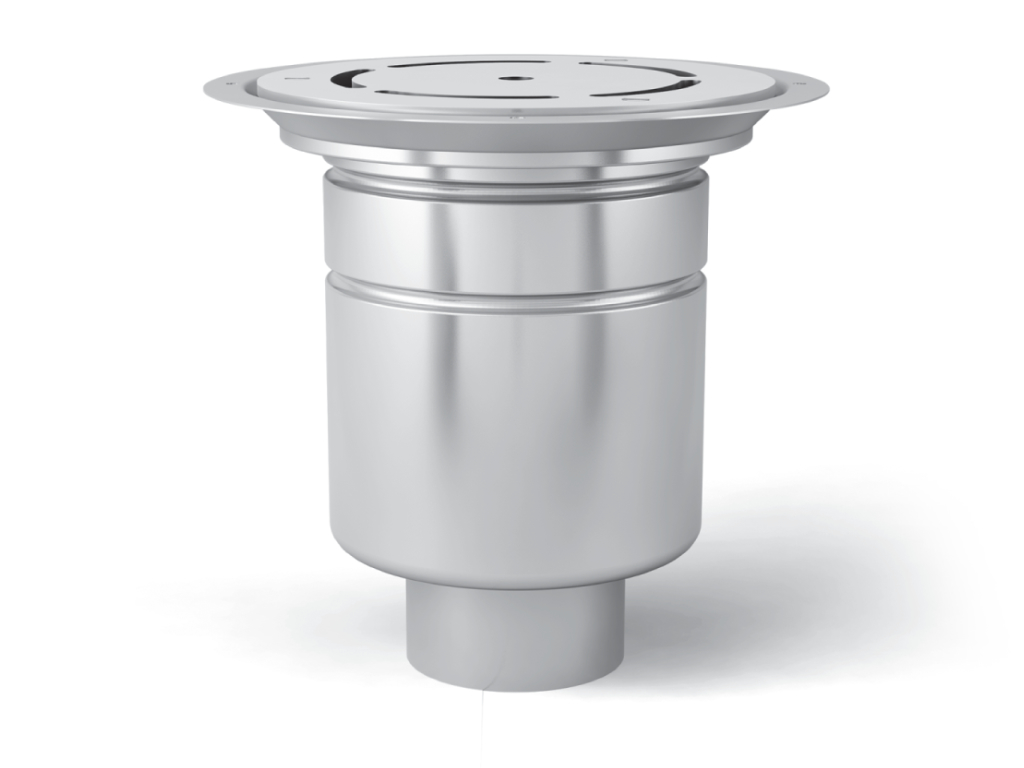

The Herbish® Vinyl Floor Drain HBV200V-WS is designed for applications where larger volumes of water, stricter hygiene requirements and long-term durability are essential. Featuring a 110mm vertical outlet and robust stainless steel construction, it provides efficient drainage performance for demanding commercial and industrial environments.
Whether specified for hospitals, commercial kitchens, wineries, breweries, or other high-use facilities, the HBV200V-WS delivers a practical combination of hygiene, corrosion resistance and dependable performance. Its larger capacity design makes it particularly well suited to areas where standard floor drains may not be sufficient.

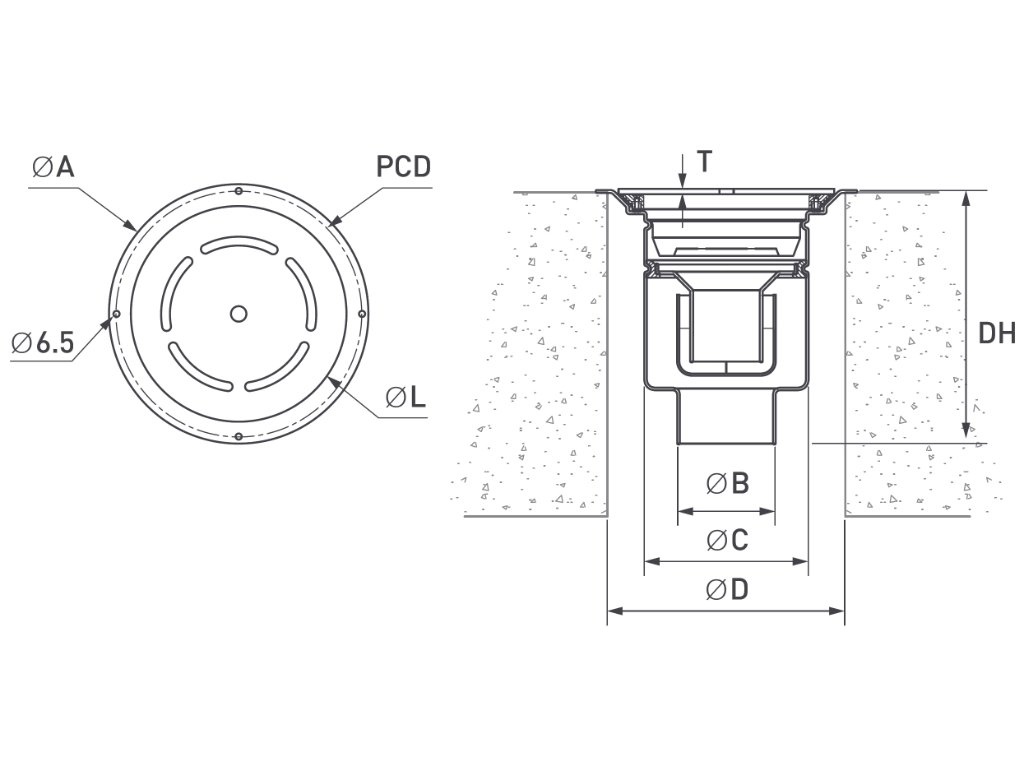

Drain Dimensions
Key Benefits
- Large-capacity 110mm vertical outlet
- Excellent corrosion resistance
- Hygienic stainless steel construction
- Suitable for demanding commercial and industrial environments
- Supplied with solids catcher basket
- Easy to install
- Easy to clean and maintain
- Secure screwed-down grating cover
- Suitable for high-hygiene applications
- Designed for long-term durability and reliability
Features
- Manufactured in 304 stainless steel
- Optional 316 stainless steel construction available
- Designed specifically for vinyl flooring and waterproofing membrane systems
- 110mm vertical outlet configuration
- Standard 50mm water seal
- Optional Green Drain™ water seal available for very high hygiene environments
- Polished top grating cover
- Grating covers supplied to suit specific operational load requirements
- Supplied complete with solids catcher basket
- Also available in extended floor drain design with 50mm or 76mm side inlet
- Secure screwed-down grating cover
- Optional high-security screws available
- Suitable for use with Polyflor sheet vinyl and similar floor finishes
Applications
Designed for environments where higher drainage capacity and hygiene are essential:
- Hospitals
- Clinics
- Hospital kitchens
- Commercial kitchens
- Canteens
- Wineries
- Breweries
- Food preparation areas
- Food processing facilities
- Commercial wet areas
- Vinyl floor installations
- Waterproofing membrane systems
Installation
Installation should be planned to ensure optimum drainage performance and long-term reliability.
- Position the drain and connect it to the drainage pipework system.
- Ensure sufficient floor gradient directs water towards the drain.
- Backfill around the drain and complete the floor finish up to the drain edge.
- Remove all protective tape and film before final sealing.
- Apply a 5–8mm bead of suitable mastic sealant where a watertight seal is required between the floor finish and drain.
For optimum performance:
- Keep waste pipe runs as short as possible.
- Minimise bends wherever practical.
- Ensure sufficient pipe gradients are maintained.
- Consider overall drainage demand when sizing the waste pipe system.
Maintenance
All Herbish® stainless steel drainage products feature a satin finish. While durable and corrosion resistant, improper cleaning methods can affect the appearance of the surface.
Any scratches or marks will not compromise the corrosion resistance or drainage performance of the product. Regular maintenance helps preserve appearance and maintain hygiene standards.
BoQ Specification
Supply, deliver and install corrosion-resistant and suitable for intended application, Herbish drain system HBV200V-WS in accordance with manufacturer’s specifications and project drawings, complete with adequate load-bearing capacity and slip resistant grating, channels, end caps and all necessary accessories, prepared substrate to receive drainage system, ensuring correct falls toward outlets with efficient water runoff with no ponding, set out and install drainage channels to line and level, ensuring alignment with finished floor levels, connect to waste system, ensuring watertight joints and compliance with plumbing regulations, secure units in position using appropriate bedding material (e.g., concrete or approved mortar), ensure correct integration with surrounding floor finishes, including edge trims where required, test installation to confirm effective drainage and absence of leaks, clean down and protect installation prior to handover, installation to be carried out by experienced contractor in accordance with best practice and manufacturer guidelines, available from Polysales +27 11 609 3500.
- Material: Stainless Steel
- Code: HBV200V-WS
Downloads
Care Guildelines
Do:
- Wash regularly using warm water followed by a cold rinse.
- Use mild dishwashing liquid or soap sparingly.
- Clean drains regularly to prevent residue build-up.
- Address stains promptly using recommended cleaning procedures.
For Specific Situations
Rust Stains
- Use a solution of 1 part nitric acid to 9 parts warm water.
- Leave in contact for one hour.
- Rinse thoroughly with cold water.
Acids
- Rinse immediately with warm water.
- Repeat twice.
Bleaches
- Rinse immediately with hot soapy water.
Don’t:
- Use chloride-based cleaning products.
- Use steel wool, wire brushes, or abrasive cleaning materials.
- Use hydrochloric acid or acid-based tile cleaning products.
- Use silver cleaners.
- Leave corrosive substances on stainless steel surfaces for extended periods.
Built to last. Designed to perform.
In demanding commercial environments, drainage systems need to do more than simply remove water. They need to support hygiene standards, withstand heavy use and perform reliably day after day.
The Herbish® Vinyl Floor Drain HBV200V-WS is designed for exactly these conditions. With its larger 110mm outlet, solids catcher basket and hygienic stainless steel construction, it provides a dependable drainage solution for facilities where performance and durability cannot be compromised.
